RightMark Audio Analyzer test report

Testing device MSIZ97G7_24-48
Sampling mode 24-bit, 48 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -4.9 dB / -4.7 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.24, +0.11
Excellent
Noise level, dB (A)
-98.4
Excellent
Dynamic range, dB (A)
98.1
Excellent
THD, %
0.0067
Very good
THD + Noise, dB (A)
-80.8
Good
IMD + Noise, %
0.0080
Very good
Stereo crosstalk, dB
-92.5
Excellent
IMD at 10 kHz, %
0.019
Very good
General performance

Excellent

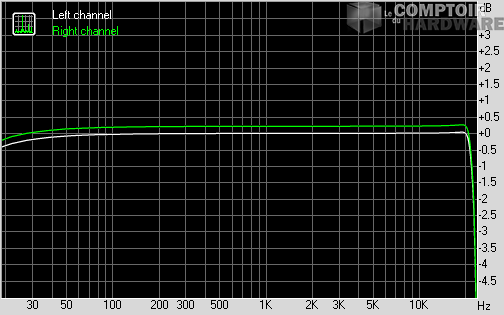

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.37, +0.04
-0.16, +0.27
From 40 Hz to 15 kHz, dB
-0.11, +0.02
+0.11, +0.24

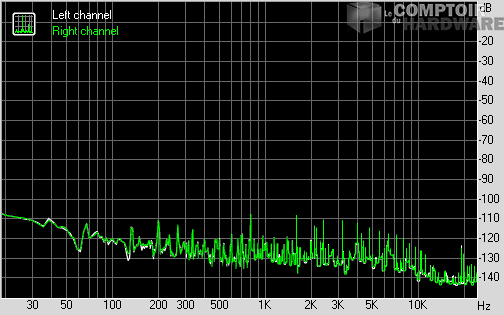

Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.9
-97.0
RMS power (A-weighted), dB
-98.4
-98.4
Peak level, dB FS
-78.0
-77.5
DC offset, %
-0.0
-0.0

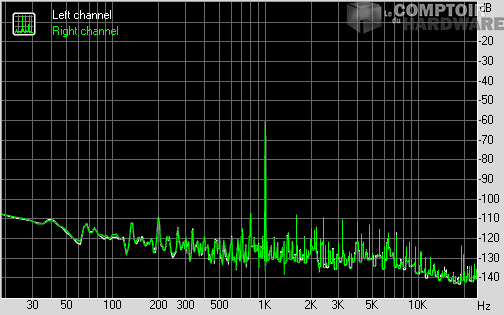

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+97.0
+97.0
Dynamic range (A-weighted), dB
+98.0
+98.1
DC offset, %
-0.00
-0.00

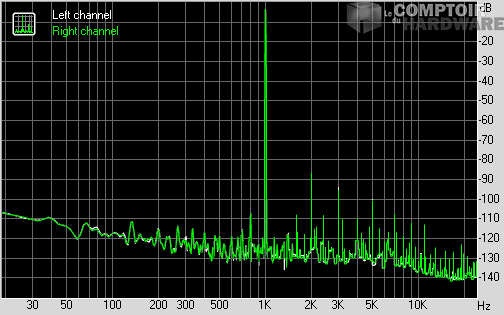

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0063
+0.0072
THD + Noise, %
+0.0069
+0.0077
THD + Noise (A-weighted), %
+0.0086
+0.0096

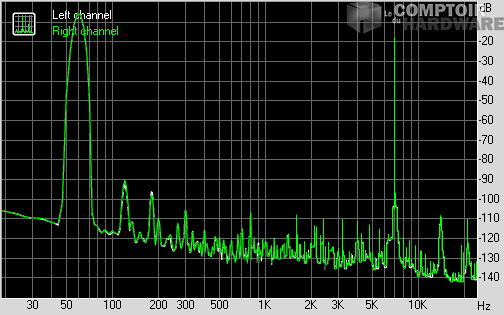

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0078
+0.0083
IMD + Noise (A-weighted), %
+0.0055
+0.0056

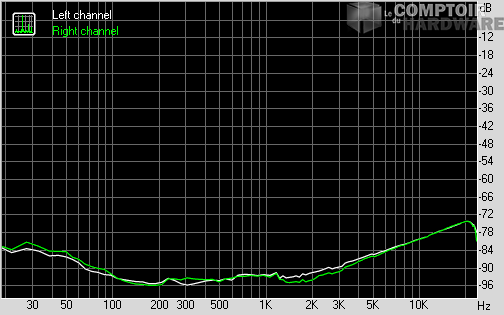

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-92
-91
Crosstalk at 1000 Hz, dB
-91
-92
Crosstalk at 10000 Hz, dB
-79
-79



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0131
0.0138
IMD + Noise at 10000 Hz,
0.0170
0.0177
IMD + Noise at 15000 Hz,
0.0246
0.0256
