RightMark Audio Analyzer test report

Testing device Maximus VII Hero
Sampling mode 24-bit, 48 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -3.6 dB / -3.5 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.05
Excellent
Noise level, dB (A)
-97.9
Excellent
Dynamic range, dB (A)
98.0
Excellent
THD, %
0.0064
Very good
THD + Noise, dB (A)
-81.2
Good
IMD + Noise, %
0.0071
Excellent
Stereo crosstalk, dB
-94.9
Excellent
IMD at 10 kHz, %
0.0063
Excellent
General performance

Excellent

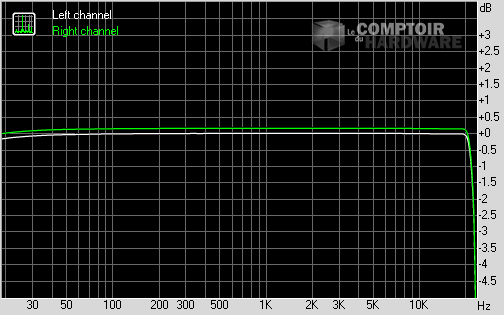

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.15, +0.01
+0.02, +0.16
From 40 Hz to 15 kHz, dB
-0.05, +0.01
+0.11, +0.16

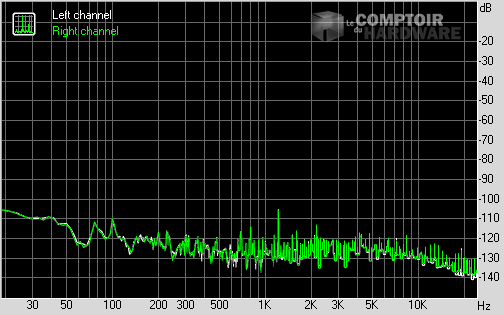

Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.2
-96.3
RMS power (A-weighted), dB
-97.9
-97.9
Peak level, dB FS
-74.3
-74.1
DC offset, %
+0.0
+0.0

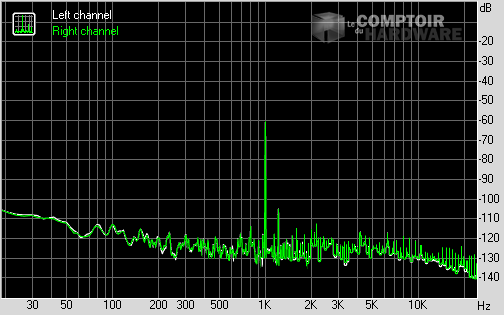

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+96.7
+96.8
Dynamic range (A-weighted), dB
+97.9
+98.0
DC offset, %
-0.00
-0.00

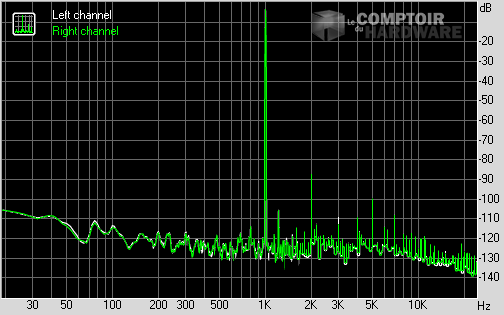

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0062
+0.0066
THD + Noise, %
+0.0069
+0.0072
THD + Noise (A-weighted), %
+0.0085
+0.0090

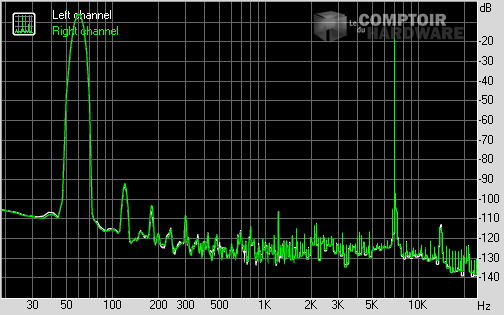

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0070
+0.0072
IMD + Noise (A-weighted), %
+0.0050
+0.0051

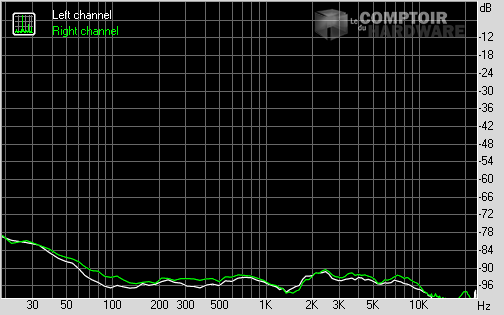

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-95
-92
Crosstalk at 1000 Hz, dB
-94
-94
Crosstalk at 10000 Hz, dB
-96
-95

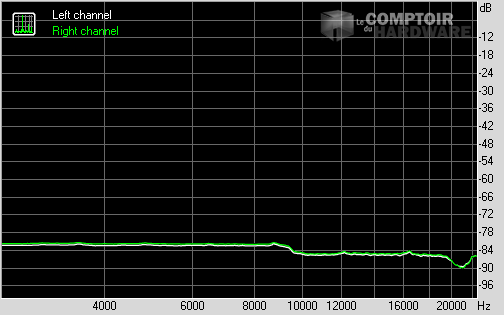

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0077
0.0082
IMD + Noise at 10000 Hz,
0.0054
0.0057
IMD + Noise at 15000 Hz,
0.0052
0.0056
