RightMark Audio Analyzer test report

Testing device ASUS MAXIMUS VII GENE
Sampling mode 24-bit, 48 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.0


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -3.7 dB / -3.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.05
Excellent
Noise level, dB (A)
-98.3
Excellent
Dynamic range, dB (A)
98.5
Excellent
THD, %
0.0052
Very good
THD + Noise, dB (A)
-83.0
Good
IMD + Noise, %
0.0059
Excellent
Stereo crosstalk, dB
-95.7
Excellent
IMD at 10 kHz, %
0.0055
Excellent
General performance

Excellent

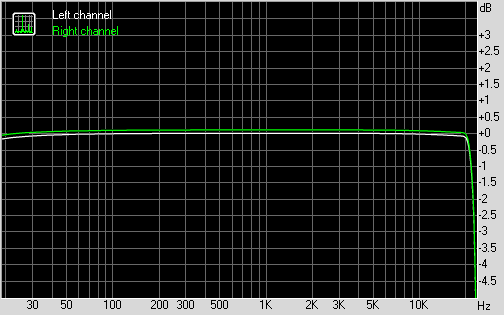

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.15, +0.01
-0.04, +0.11
From 40 Hz to 15 kHz, dB
-0.05, +0.01
+0.06, +0.11



Noise level

Spectrum graph


Left
Right
RMS power, dB
-97.5
-97.4
RMS power (A-weighted), dB
-98.3
-98.3
Peak level, dB FS
-76.0
-76.0
DC offset, %
+0.0
+0.0

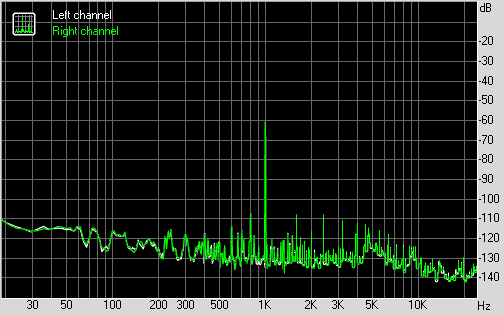

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+98.0
+98.1
Dynamic range (A-weighted), dB
+98.4
+98.5
DC offset, %
+0.00
+0.00

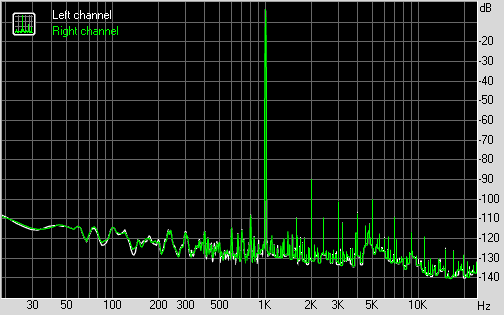

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0051
+0.0052
THD + Noise, %
+0.0056
+0.0057
THD + Noise (A-weighted), %
+0.0070
+0.0071

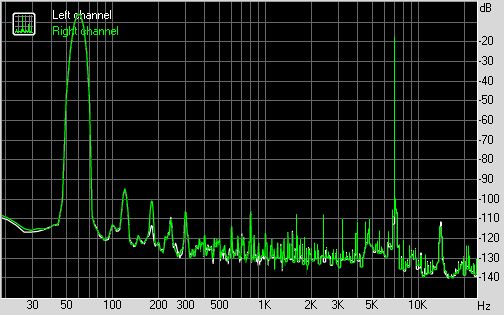

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0057
+0.0060
IMD + Noise (A-weighted), %
+0.0045
+0.0046

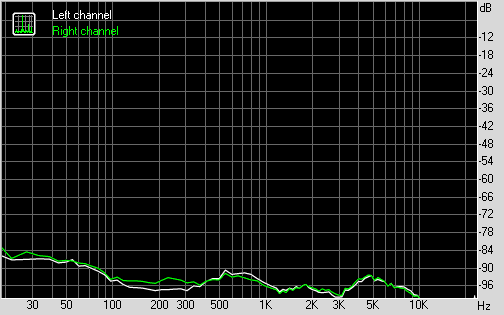

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-93
-93
Crosstalk at 1000 Hz, dB
-94
-95
Crosstalk at 10000 Hz, dB
-99
-99

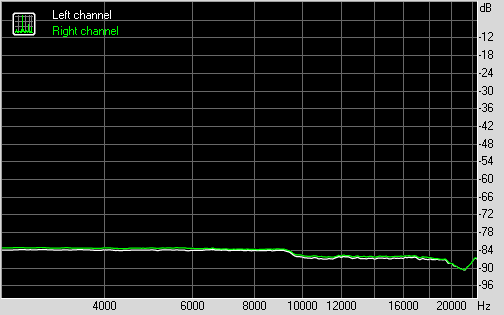

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0064
0.0069
IMD + Noise at 10000 Hz,
0.0048
0.0052
IMD + Noise at 15000 Hz,
0.0045
0.0049
